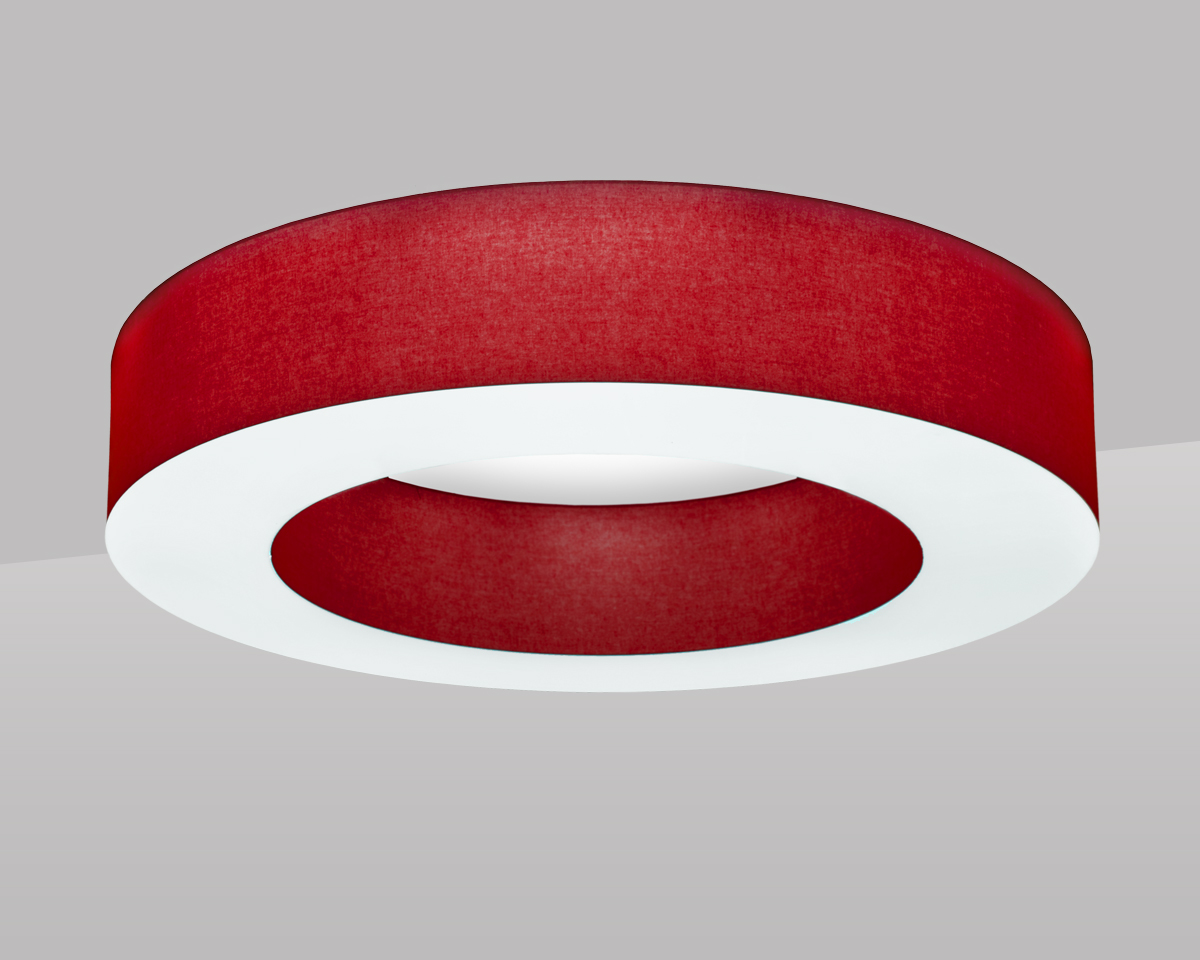

Surface Donut

One of our most popular fixtures, the Surface Donut has found its home in hospitals, schools, office buildings and more.

Fully enclosed and washable, any dirt or debris will stay on the exterior of the fixture where it can easily be disinfected and wiped away, making it suitable for interiors with high sanitary requirements, such as healthcare and foodservice facilities.

Manufactured with Barbican’s laminated shade material, ensures that the fixture is durable and less prone to damage during installation and day to day interactions than traditional fabric shades.

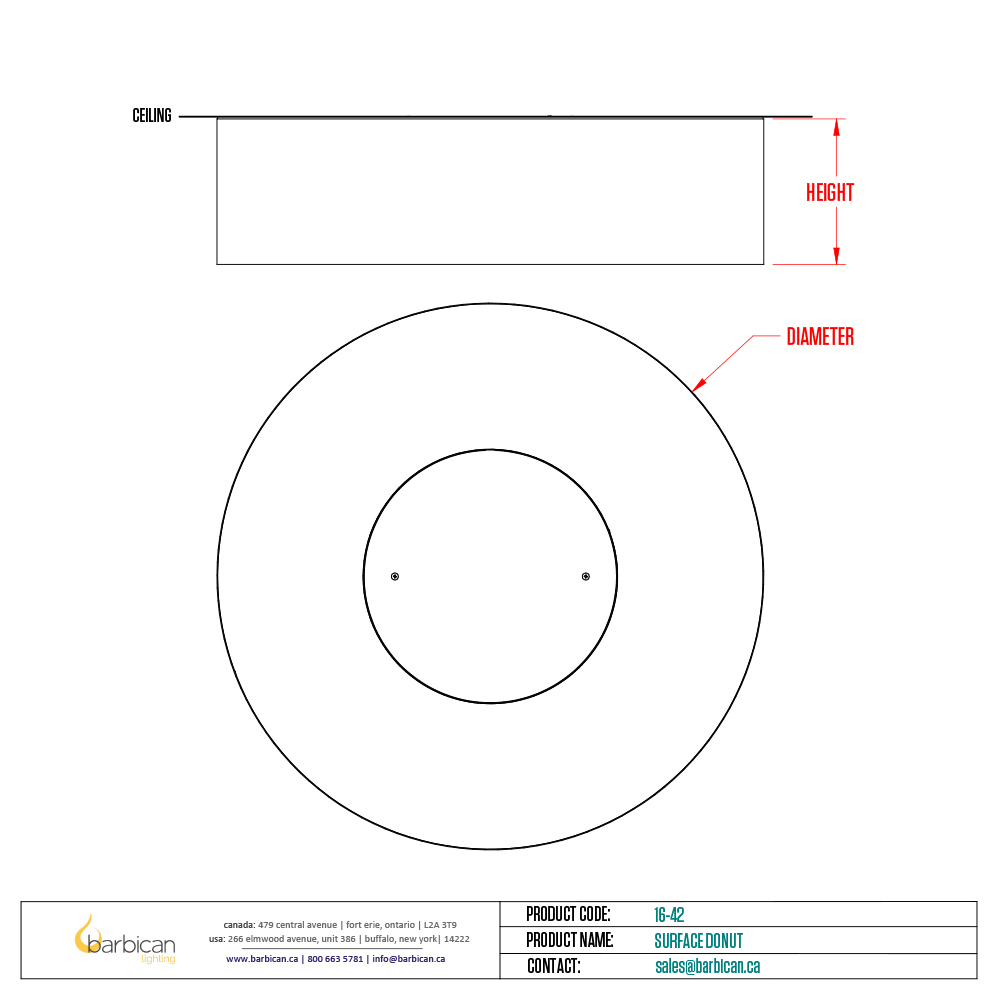

The inside diameter (D2) is always 16″ less than the overall (outer) diameter (D1). Please see below:

  • 24″ = Outer is 24  |  Inner is 8
  • 30″ = Outer is 30  |  Inner is 14
  • 36″ = Outer is 36  |  Inner is 20
  • 42″ = Outer is 42  |  Inner is 26
  • 48″ = Outer is 48  |  Inner is 32
Downloads
Spec Sheet
Spec Sheet
Barbican Surface Donut SpecSheet
Cut-Sheet PDF
Cut-Sheet PDF
Barbican Lighting 16 42 Surface Donut Drum Cut Sheet
Reference PDF
Reference PDF
Barbican Lighting Surface Donut LD
Revit Package
Revit Package
Barbican Donut Surface Lighting Rfa
Barbican Lighting Surface Donut Scarlet Office Inspiration
Tagged:   Lighting

Related Products

Aerie
Hamlin DOS
Hamlin UNO
Antica Sconce
Avenue
Biscotti Sconce
Donut
Double Devo

Product Builder

We recommend you reference the downloadable SpecSheet currently which shows all available and updated options.

You may still use the product builder to generate legacy product codes:



Product Builder

Configure a custom product using these options:
Choose between standard laminated fabric, or our new acoustic application material which reduces ambient sound and echo via spacial audio dampening. Read more about this exciting new technology here.

Laminated Materials

Select Laminated Fabric Later
Open the options to select.

Acoustic Materials

Select Acoustic Reflex Shade Later
Open the options to select.
Choose the height of the acoustic material overlay.
Choose the amount of overlap from the bottom of the fixture.
Choose how much of the inner fixture material will be visible.
Note: This exposure amount is subtracted from the felt. Your overall height will always be the AR fabric height to ensure your total height does not exceed the specifications.
Choose which inner lighting fixture material.
Black
Open the options to select.

Standard Options

Configure these standard options in accordance with your technical specifications.
Choose between Stainless Steel Aircraft Cable with either a Black or White Power Cord, or Stem Mount. Standard Aircraft Cable is 144". Standard Stem length is 48".
Applies to bottom diffusers only (and middle, where applicable). Note: "HTO" in part number stands for High Transmission Opal, our standard diffuser.
Finish applies to the canopy and, if applicable, the stem. RAL colours are a premium option, additional charges apply and may increase lead time.
All of our products are now available in LED only. If you require fluorescent or incandescent sourcing, please contact Barbican for options. Please note if lumens are shown, they are delivered and approximate. Other lumen packages are available. Driver loss is included in the Nominal LED Wattage.
120 and 277 are standard options
Colour temperature is a description of the warmth or coolness of a light source. It is a characteristic of visible light and is stated in units of absolute temperature, known as Kelvin (K).
A colour rendering index (CRI) is a quantitative measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with an ideal or natural light source.
Sensor Ready and Integrated controls, as well as proprietary drivers can be added to Barbican fixtures. Please consult Barbican for availability of these options for this fixture.

Request for Quote

Please include the following information so that we can contact you about your quote:
Barbican Lighting Surface Donut LD
Surface Donut

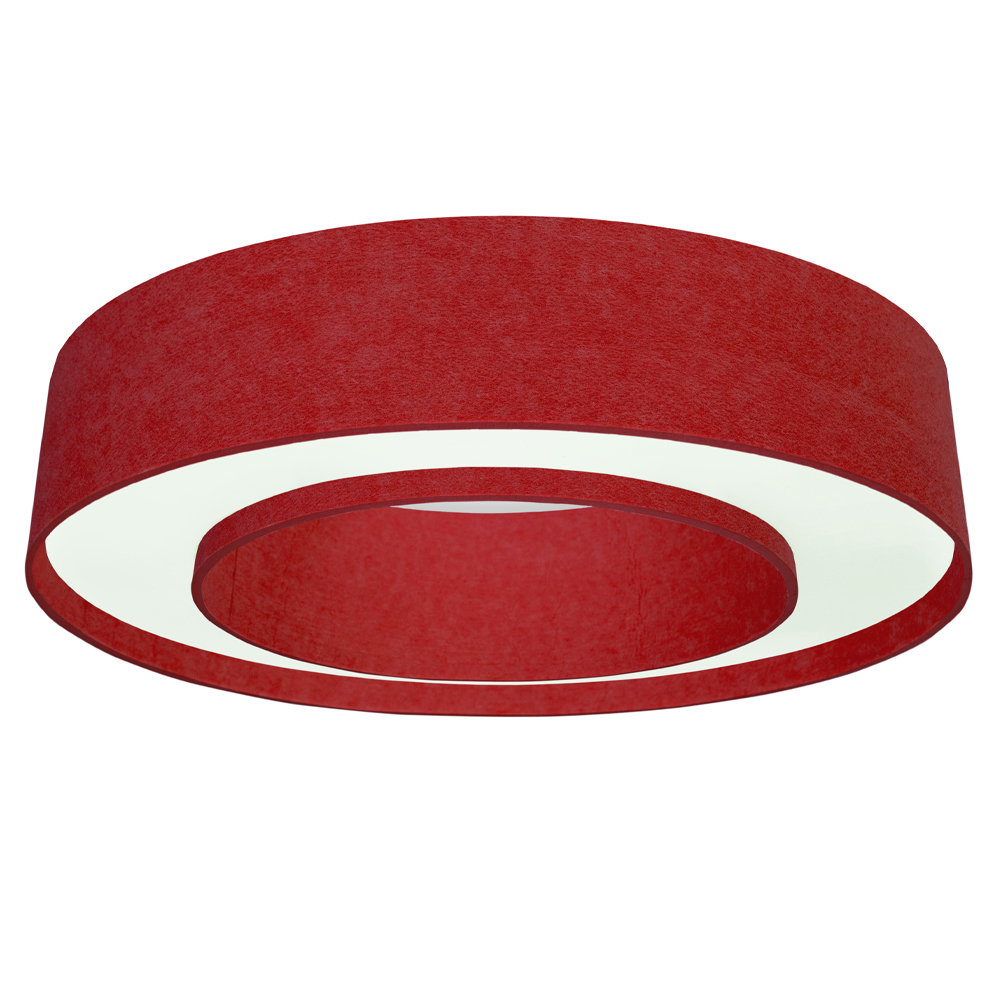

Barbican Lighting Surface Donut Ruby AR Product
