The Wave

The award-winning Wave by Barbican was engineered as a modular, reconfigurable and stand alone high performance LED lighting system utilizing the most advanced Green Energy technology.

It offers a contemporary and distinctive design with performance levels ideal for today's commercial, healthcare, and hospitality environments. With its sleek and compact design and multitude of finish options, the Wave is distinguished in its versatility and adaptability to any environment and application.

All fixtures are fully enclosed which reduces dirt and dust infiltration, providing years of unobstructed use. Available in individual modules, the Wave product line offers an extensive range of shapes, sizes, and proportions to meet the demands of any specification.

Downloads

Spec Sheet

Automatically Generated PDF

Brochure PDF

Barbican Lighting Wave Brochure

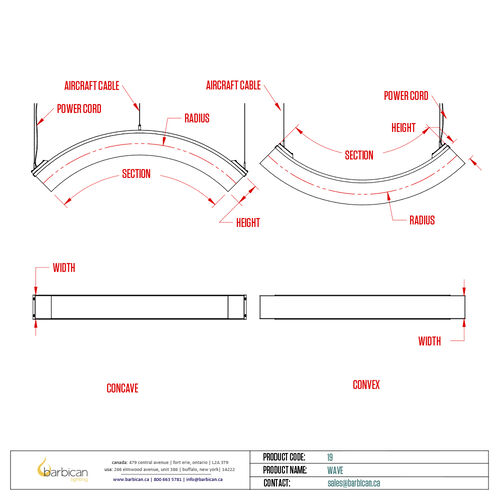

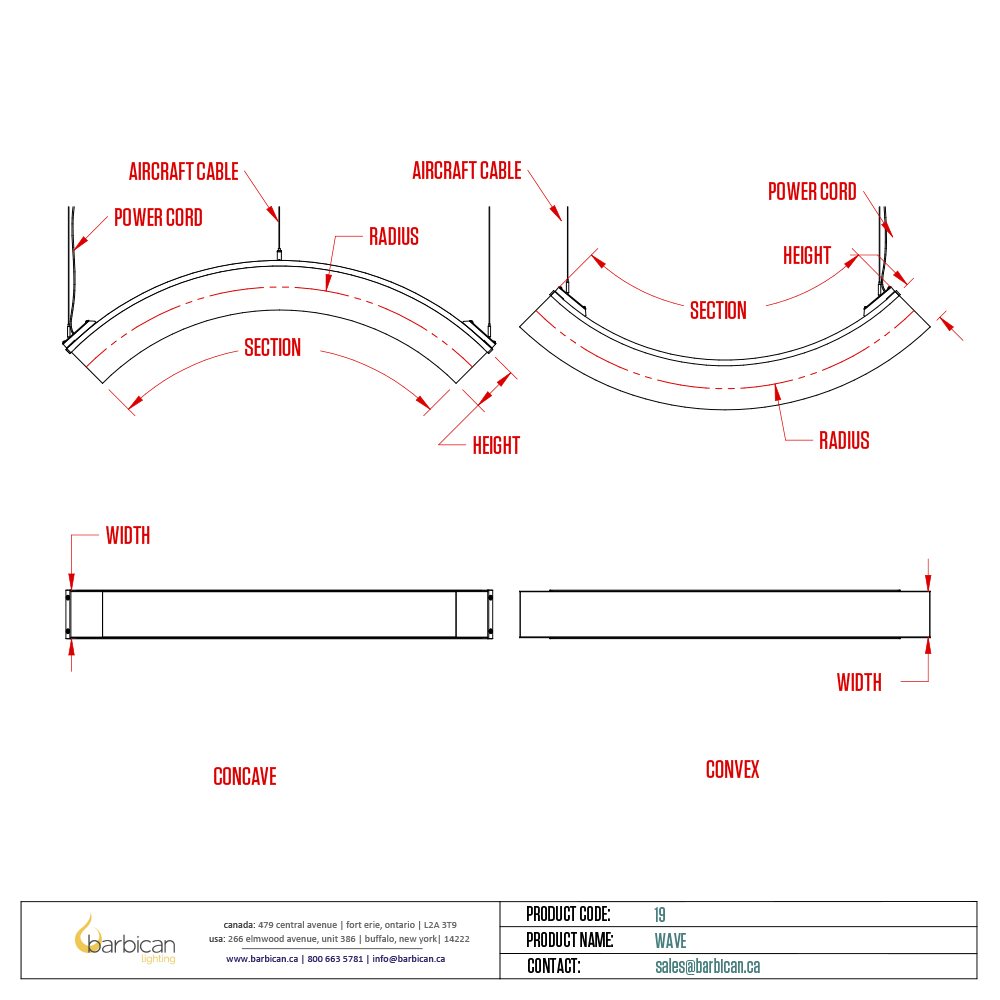

Line Drawing PDF

Barbican Lighting Wave LD

Revit Models

RVT 518 THE WAVE

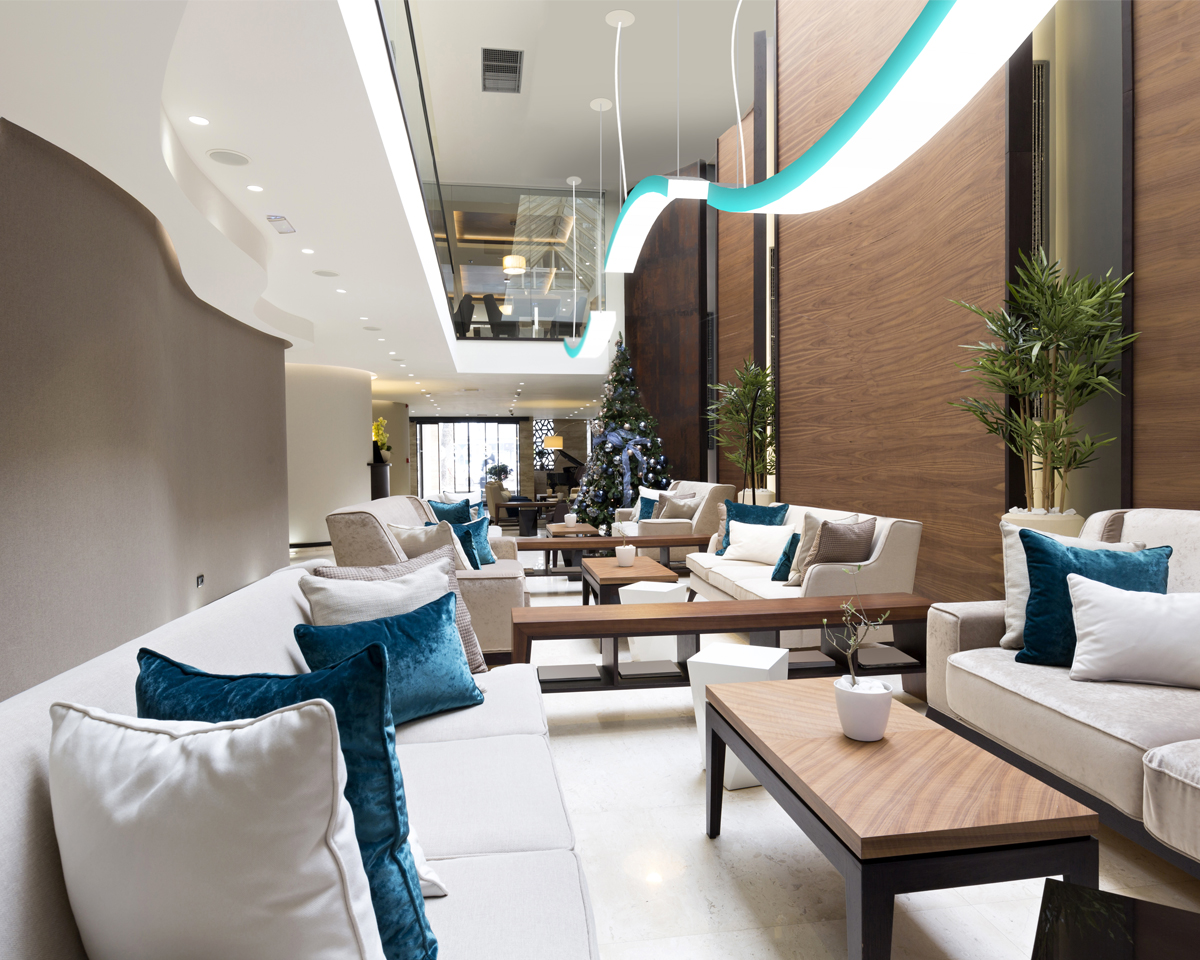

The Wave Lighting in a Hotel Lounge Settings Hospitality Marketplace

The Wave Lighting in a Cafeteria Hospitality Marketplace

The Wave Lighting in An Airport Industrial Marketplace

The Wave Lighting in a Retail Clothing Display Window Commerical Marketplace

The Wave Lighting in a Retail Shoe Store Commerical Marketplace

The Wave Lighting in a Hotel Lobby Hospitality Marketplace

The Wave Lighting in a Retail Kids Clothing Store Commerical Marketplace

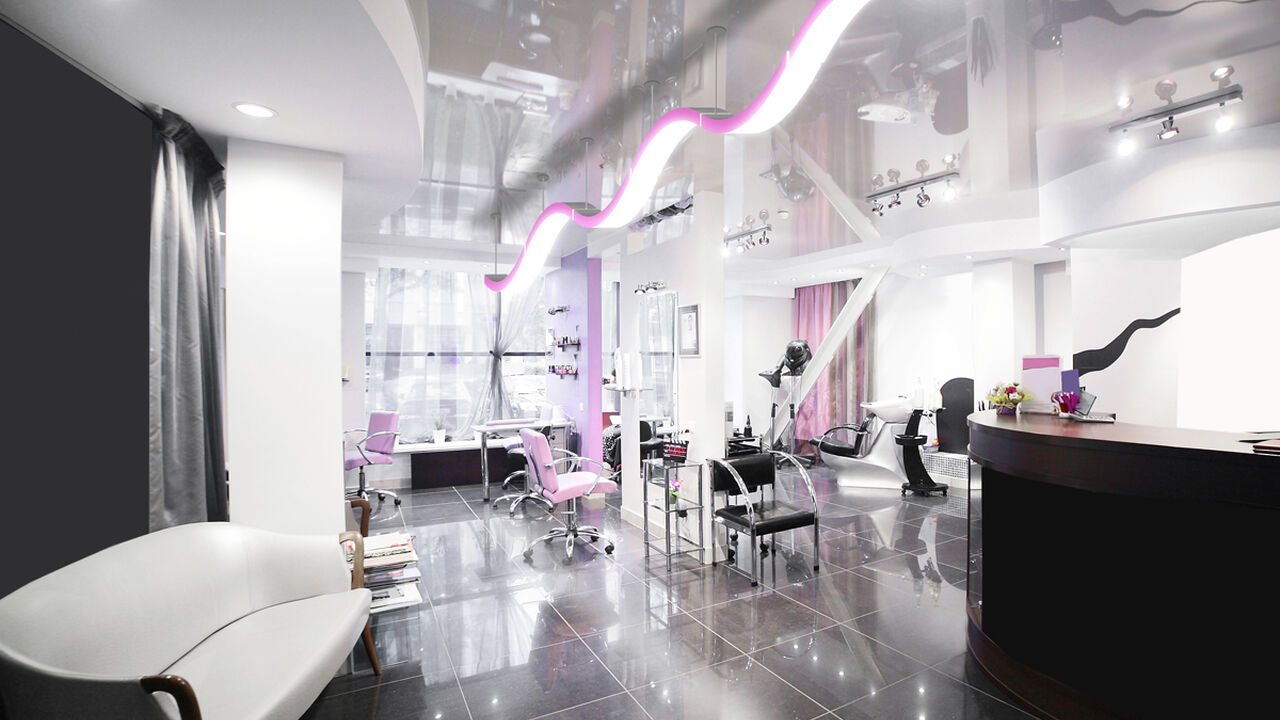

The Wave Lighting in a Hair Salon Commerical Marketplace

Tagged: Metro Modular, Metro Modular, Pendants, Lighting

Related Products

Avenue

Bend

Chek

Crossroad

Elbow

Modular Preconfigured Circle

Swerve

Tee

Product Builder

Configure a custom product using these options:

Product Code

Shape

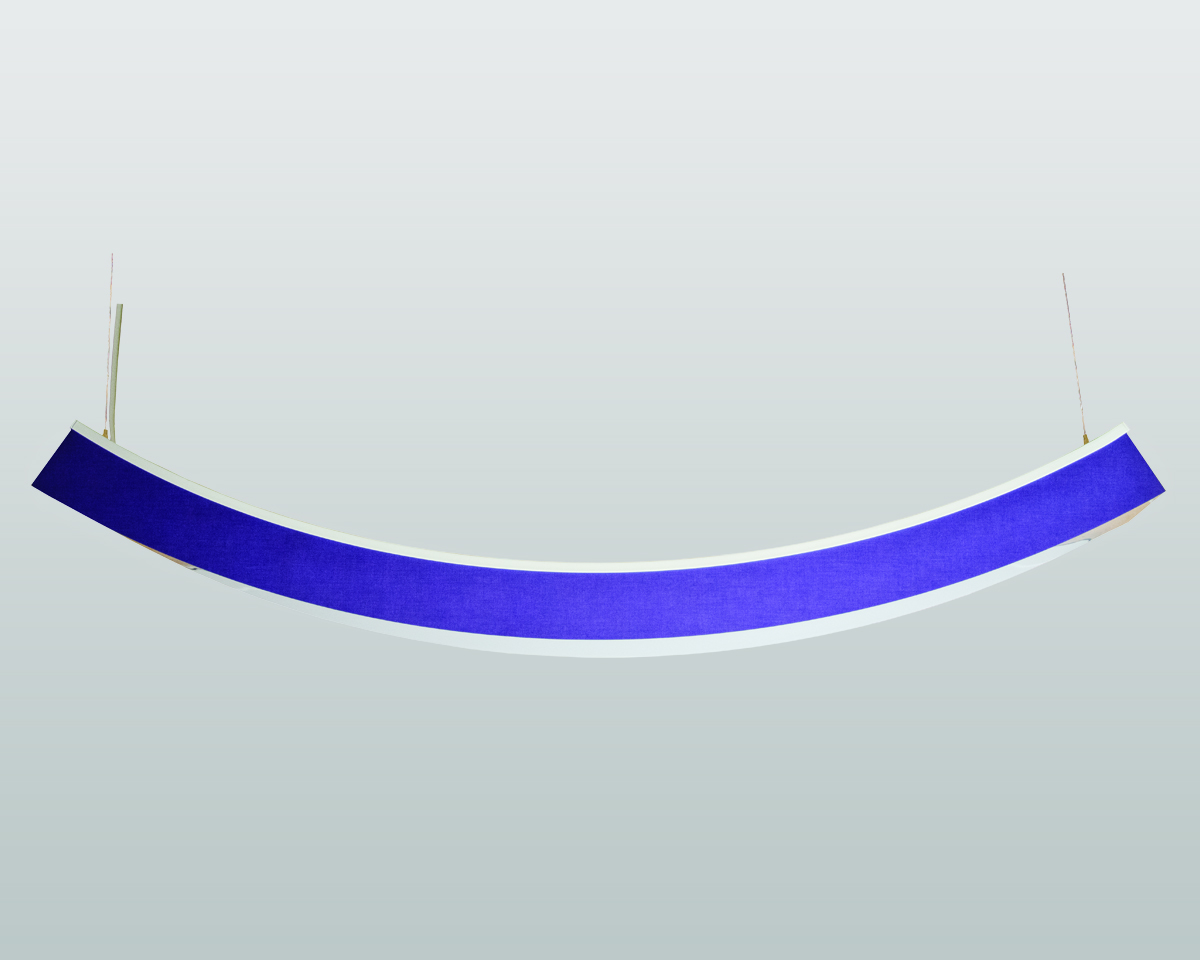

Convex

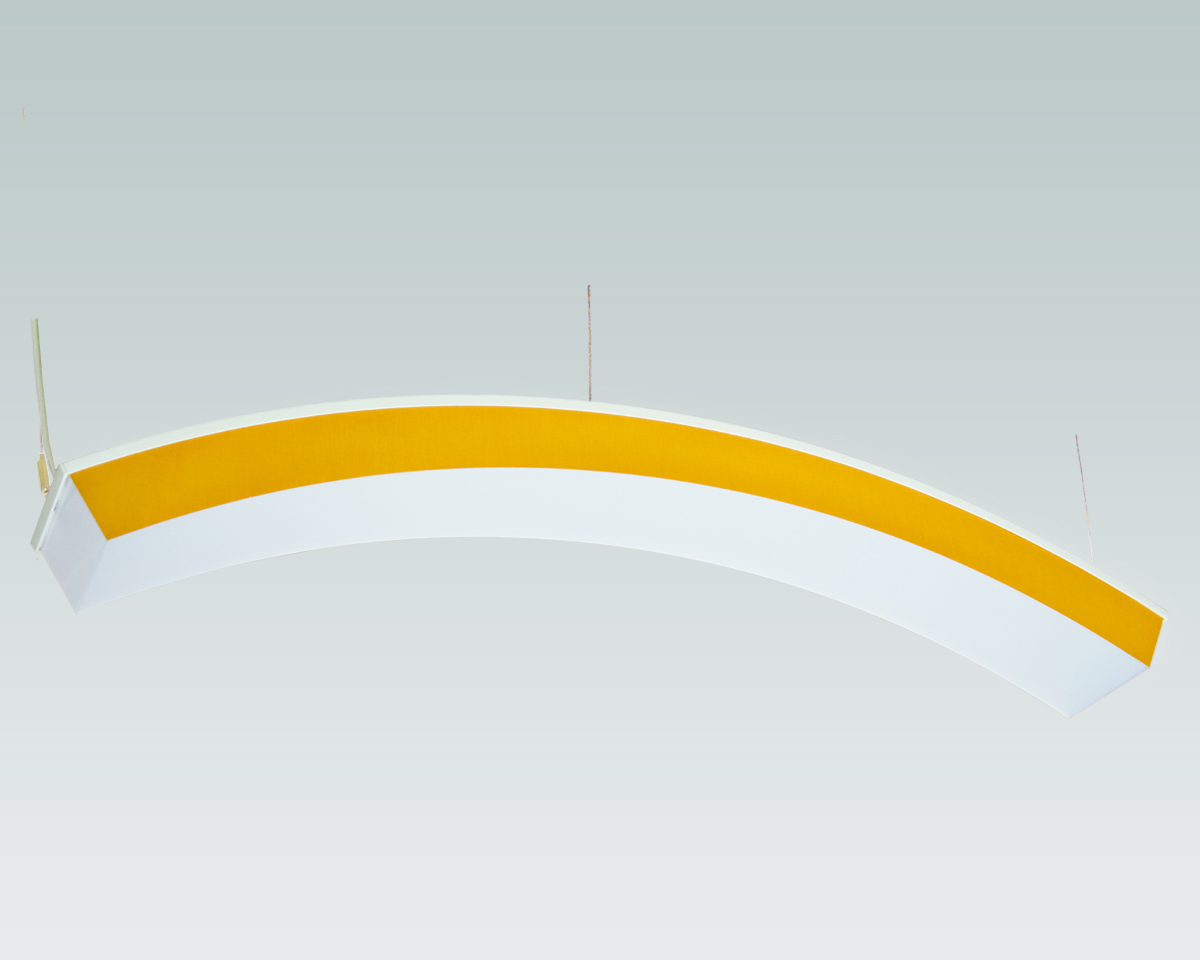

Concave

Radius

24" Radius

48" Radius

96" Radius

144" Radius

Material Type

Choose between standard laminated fabric, or our new acoustic application material which reduces ambient sound and echo via spacial audio dampening. Read more about this exciting new technology here.

Laminated Fabric

Acoustic Reflex

Laminated Materials

Material

Select Laminated Fabric Later

Open the options to select.

Acoustic Materials

Material

Select Acoustic Reflex Shade Later

Open the options to select.

Total Felt Height

Choose the height of the acoustic material overlay.

12"

18"

24"

Placement

Flush Fit

Overlap Lens

Expose Inner Fabric

Exposure Amount

Choose how much of the inner fixture material will be visible.

Note: This exposure amount is subtracted from the felt. Your overall height will always be the AR fabric height to ensure your total height does not exceed the specifications.

Inner Material

Choose which inner lighting fixture material.

Black

Open the options to select.

Standard Options

Configure these standard options in accordance with your technical specifications.

Mounting

Choose between Stainless Steel Aircraft Cable with either a Black or White Power Cord, or Stem Mount. Standard Aircraft Cable is 144". Standard Stem length is 48".

Aircraft Cable WHITE Power Cord

Aircraft Cable BLACK Power Cord

End Lens

Applies to side/end lens only.

Match Bottom Lens

Match Front Material

Driver Location

Surface Ceiling Location

Flush Ceiling Location

Above Ceiling Location

Finish (Canopies, Stems)

Finish applies to the canopy and, if applicable, the stem. RAL colours are a premium option, additional charges apply and may increase lead time.

White

Black

Brushed Aluminum

RAL (North American)

Source

All of our products are now available in LED only. If you require fluorescent or incandescent sourcing, please contact Barbican for options. Please note if lumens are shown, they are delivered and approximate. Other lumen packages are available. Driver loss is included in the Nominal LED Wattage.

190LM/LF (2W/LF)

380LM/LF (4W/LF)

760LM/LF (8W/LF)

Voltage

120 and 277 are standard options

120 Volts

277 Volts

Temperature

Colour temperature is a description of the warmth or coolness of a light source. It is a characteristic of visible light and is stated in units of absolute temperature, known as Kelvin (K).

2700 °K

3000 °K

3500 °K

4000 °K

Colour Rendering Index

A colour rendering index (CRI) is a quantitative measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with an ideal or natural light source.

90 CRI

Dimming Drivers

Sensor Ready and Integrated controls, as well as proprietary drivers can be added to Barbican fixtures. Please consult Barbican for availability of these options for this fixture.

DB(0-10V)

Assembly Type

All configurations come standard with a 1″ purpose gap. A butt joint is available upon request for most configurations.

Single Pendant

Purpose Gap

Request for Quote

Please include the following information so that we can contact you about your quote:

Quantity

Name

Phone

City

State / Province

Your Project Name

Notes

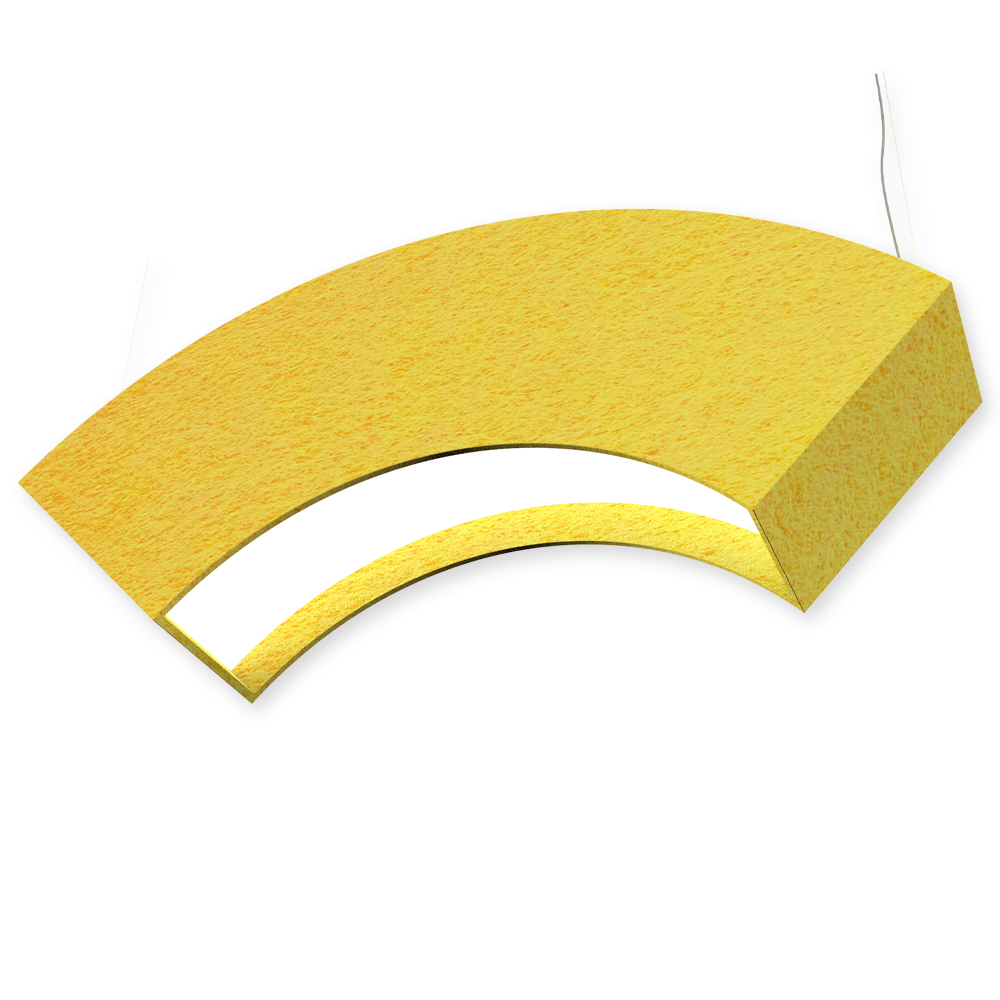

Barbican Lighting The Wave Saffron AR Product
