FOM Lumber

The FOM Lumber Ceiling System from Barbican is an easy to specify, fully integrated, area or whole-room solution incorporating lighting and acoustic baffles in predefined configurations. Simply identify overall length and width for the system to cover, as well as options for baffle height, baffle spacing, wood print or acoustic color, and lumen output, and the specification is complete.

Barbican uses the FOM Cube in a unique orientation – at the top and running perpendicular to the baffles. The omnidirectional distribution from the FOM Cube helps to evenly illuminate the baffles and the space below without glare. This approach eliminates the cave effect, increases perceived ceiling height, and accentuates the wood print details in the acoustic PET baffles as a feature in the space. The Lumber AR baffles offer multiple wood grain patterns, as well as stain options to obtain exactly the look desired, and our true-to-life printing – including realistic end grain detail gives a space the look of wood with increased acoustic absorption (with NRC values up to 0.9 for the system) and the same equivalent surface area coverage of a standard ACT grid system.

Downloads
Spec Sheet
Spec Sheet
Barbican FOM Lumber SpecSheet
Brochure PDF
Brochure PDF
Barbican FOM Lumber Brochure
Reference PDF
Reference PDF
Barbican Line Drawing FOM Lumber Lit
Reference PDF
Reference PDF
Barbican Line Drawing FOM Lumber UnLit
Reference PDF
Reference PDF
Barbican FOM Lumber Wood Sampler
Revit Package
Revit Package
Barbican FOM Lumber Revit Files

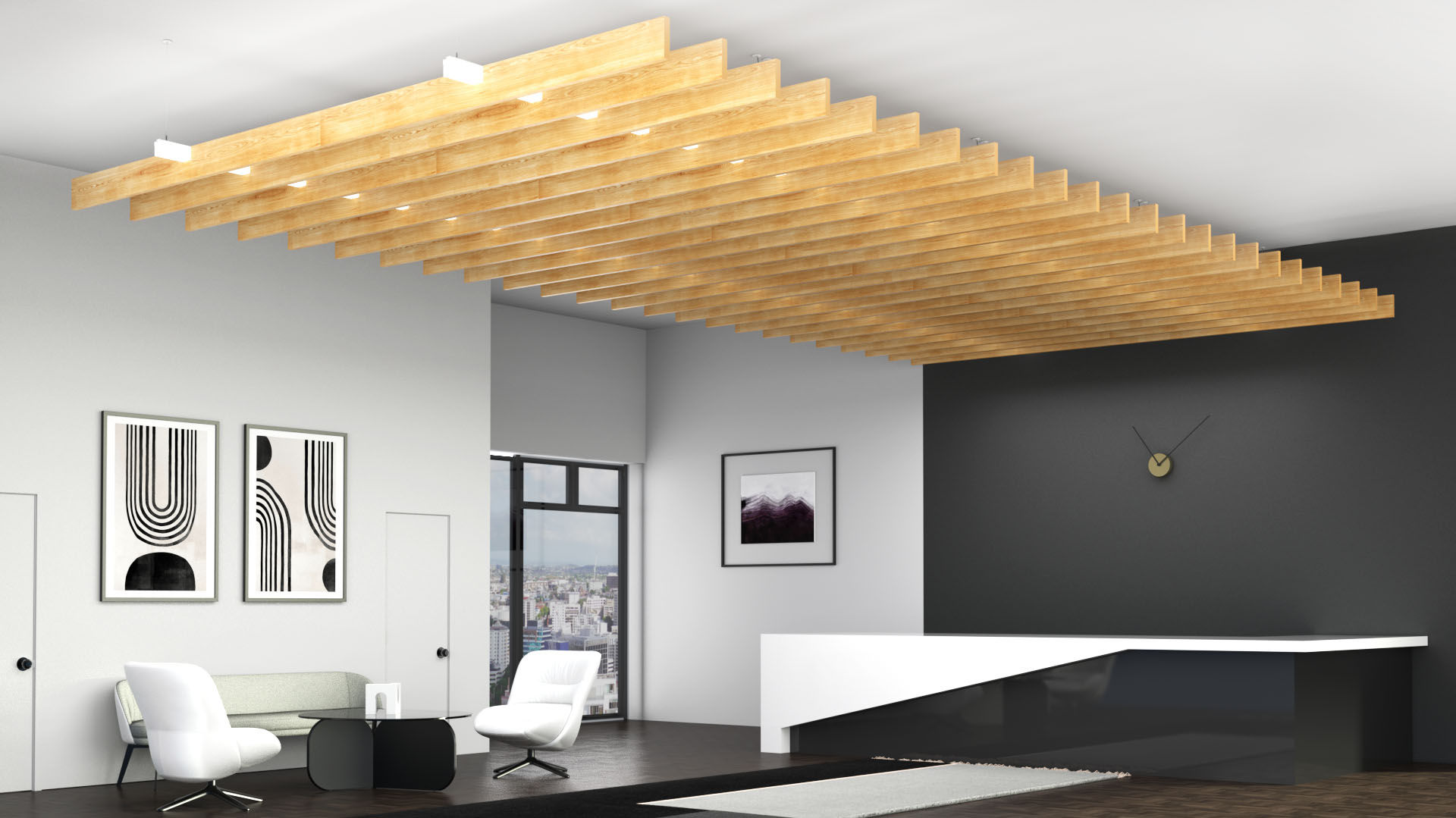

Barbican Lighting Fom Lumber Reception
Barbican Lighting Fom Lumber Common Area2
Barbican Lighting Fom Lumber Office Inspiration
Barbican Lighting Fom Lumber Closeup Product
Barbican Lighting Fom Lumber Common Area1
FOM Lumber
FOM Lumber
FOM Lumber
FOM Lumber
FOM Lumber
Tagged:   FOM,   Pendants,   Lighting,   Acoustic
In addition to increased acoustic performance, introducing the true-to-life digital wood grains into a built environment adds a direct biophilic design element to help remind inhabitants of nature, which has been shown to reduce stress levels. Lumber AR baffles are constructed to match dimensional sizes of actual lumber. For example, as with lumber used for building framing, our 2x8 Lumber AR baffle will measure actual size 1 ½” x 7 ¼”. The Lumber AR system can also be used in forms other than suspended baffles. Consider the Lumber AR system anywhere exposed wood may be considered for aesthetic purposes, as the Lumber AR system can be constructed as you would with normal lumber in various non-structural configurations (such as an indoor pergola). Mounting hardware available from Barbican. See dimensional drawings or consult Barbican for more information.

Product Award

LIT Design Awards 2022

Product Video

FOM Product Video

Product Builder

We recommend you reference the downloadable SpecSheet currently which shows all available and updated options.

You may still use the product builder to generate legacy product codes:



Product Builder

Configure a custom product using these options:
Baffle Direction
FOM Fixture Direction

Acoustic Finish

Ash - Golden Honey
Open the options to select.

Lighting Specification

Request for Quote

Please include the following information so that we can contact you about your quote:
Barbican Lighting FOM Lumber Line DWG Lit Page 1
Barbican Lighting FOM Lumber Line DWG Lit Page 2
Barbican Lighting FOM Lumber Line DWG Lit Page 3
Barbican Lighting FOM Lumber Line DWG Lit Page 4

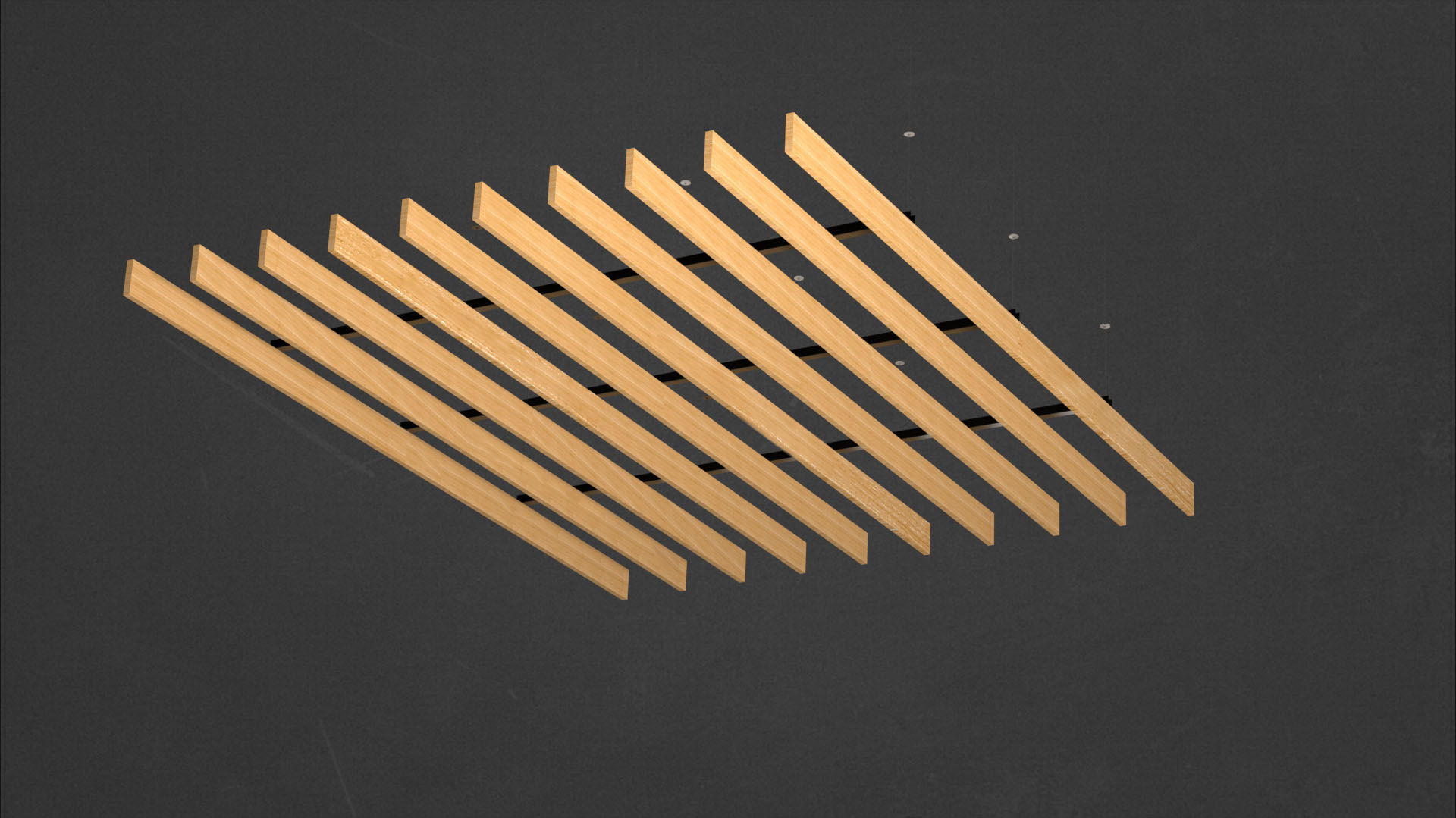

Barbican Lighting Fom Lumber Unlit
