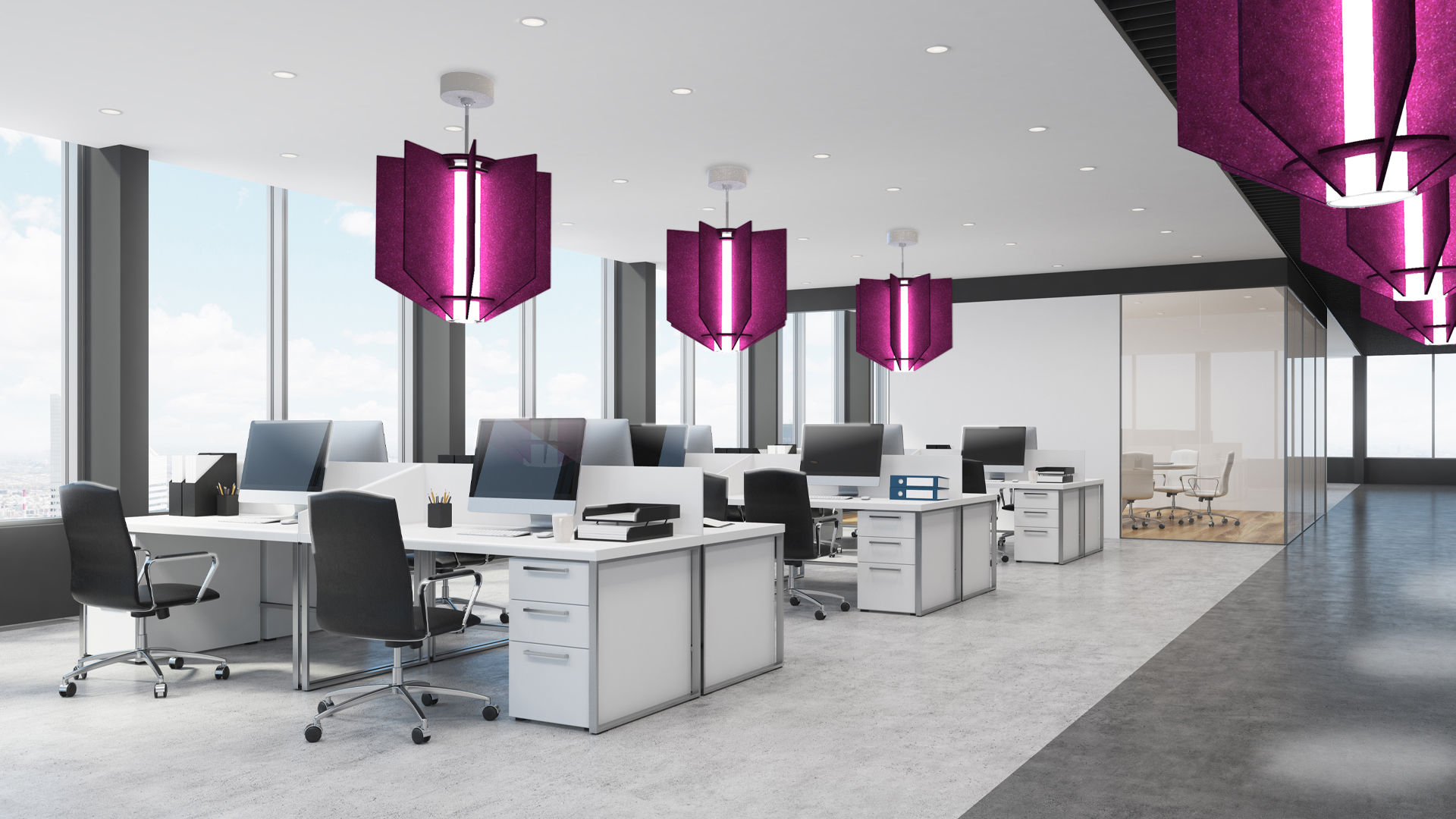

Belleville This updated take on the classic turbine is set to take off in any setting. Available in 6 sizes and 3 fin configurations, with or without lighting options. The taper on bottom of the fins is 30 degrees. Acoustic Fixtures are an excellent way to decrease ambient noise in your space. High design and function make these fixtures a beautiful and unique way to establish your own Quietude.
Downloads
Spec Sheet
Spec Sheet
Barbican Belleville ARF 102 Specsheet
Reference PDF
Reference PDF
Barbican AR Fixture Belleville LD

Product Builder

Configure a custom product using these options:
Increasing fins increases the Sabin count for the fixture but reduces light output.
Select Acoustic Reflex Shade Later
Open the options to select.
Choose between Stainless Steel Aircraft Cable with either a Black or White Power Cord. Standard Aircraft Cable is 144".
Finish applies to the canopy and, if applicable, the stem. RAL colours are a premium option, additional charges apply and may increase lead time.

Lighting Options

LED is our standard light source. If you require fluorescent or incandescent sourcing, please contact Barbican for options. Lumens shown are the delivered lumens for the light fixture before the addition of the felt components. Photometric files are available here. Based on a 28” Carambola the output reductions for the number of fins are: 4 Fins 33%, 8 Fins 50%, 12 Fins 64%. Since there are so many combinations Barbican cannot test every configuration. If you require precise photometry we are happy to run them for you. Allow 3-4 days.
All of our products are now available in LED only. If you require fluorescent or incandescent sourcing, please contact Barbican for options. Please note if lumens are shown, they are delivered and approximate. Other lumen packages are available. Driver loss is included in the Nominal LED Wattage.
120/277 is a standard option
Colour temperature is a description of the warmth or coolness of a light source. It is a characteristic of visible light and is stated in units of absolute temperature, known as Kelvin (K). To specify Colour Tuning contact Barbican for Control Options.
A colour rendering index (CRI) is a quantitative measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with an ideal or natural light source.
All standard drivers have 0-10V (10%) dimming included. Other dimming options as well as Integrated Controls, Sensors and Proprietary equipment can be included in your fixture. Please add your requirements into the notes section below.

Request for Quote

Please include the following information so that we can contact you about your quote:
Barbican AR Fixture Belleville Lit LD
Barbican AR Fixture Belleville Unlit LD
